The Ultimate Nissan 370z Coilover Guide

18th January, 2018 in Tuning Guides

We review the most popular Nissan 370z coilovers available on the market today. From budget to pro. This is the ultimate Z34 coilover guide.

370z coilover guide

Nissan’s latest offering in the Z-car range has become hugely popular within the modifying scene and it’s easy to see why. With stunning looks already provided from the factory, we’re here to advise you on how to make your 370Z stand out from the crowd whilst handling like it’s on rails!

This guide reveals coilover suspension specifications, features, construction materials, spring rates, manufacturer descriptions and our own comments. We have also given each suspension system a Drifted rating based upon features and price. We are looking at budget, mid-range and high end coilovers in this comparison.

Let’s take a look at our Nissan 370z coilover selection

To read more about any of these products simply click on the coilover name or photo.

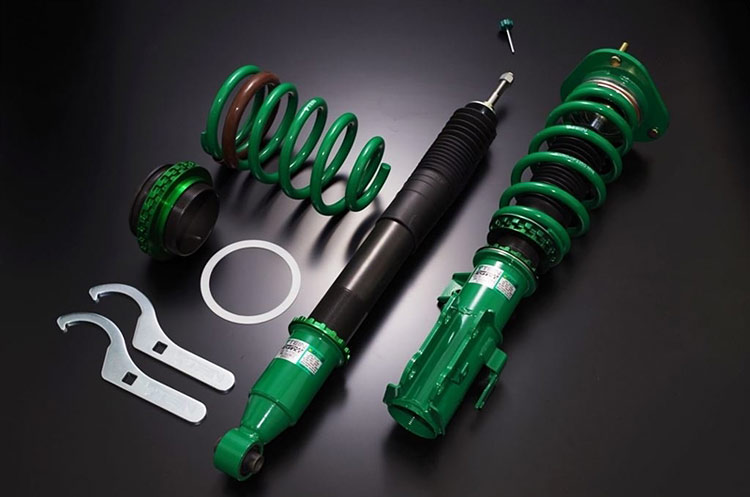

Tein Street Flex 370z Coilovers

tein 370z coilovers

  • Manufacturer: Tein
  • Levels of damping adjustment: 16
  • Construction type: Twin tube
  • Spring rate front: 12kg/mm
  • Spring rate rear: 10kg/mm
  • Fitment: Nissan 370z, Z34
  • Price: $1,577.00
  • Drifted rating:xxxx
  • Purchase link: Buy your Tein Street Flex Coilover Kit at FRSport.com

Our comment: The Tein Street Flex coilover kit is a highly regarded offering from the popular JDM suspension manufacturer. This setup is likely to provide you with a slightly firmer ride than it left the factory with but providing substantial handling gains.

Tein have produced an optional-extra electronic dampening device, which connects exclusively to Tein coilovers. This allows you to adjust the 16-level stiffness inside the car to give you the perfect setting for street cruising or track racing at the touch of a button.

Manufacturer description:The Street Flex damper is the evolution of our popular Type Flex coilover. Developed to provide the ultimate balance of comfort and performance for both street driving and circuit use, along with wide-range damping force adjustment using our new Advance Needle technology and new damper valving specs, giving the driver a much more noticeable feel in damping force change and controllability.

The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Full-length adjustability offers separate spring preload and ride height adjustment. Updated internal components and external coatings increase durability and product life. Includes Pillowball Upper Mounts (camber adjustable for strut type applications) and is compatible with the EDFC and EDFC Active systems.

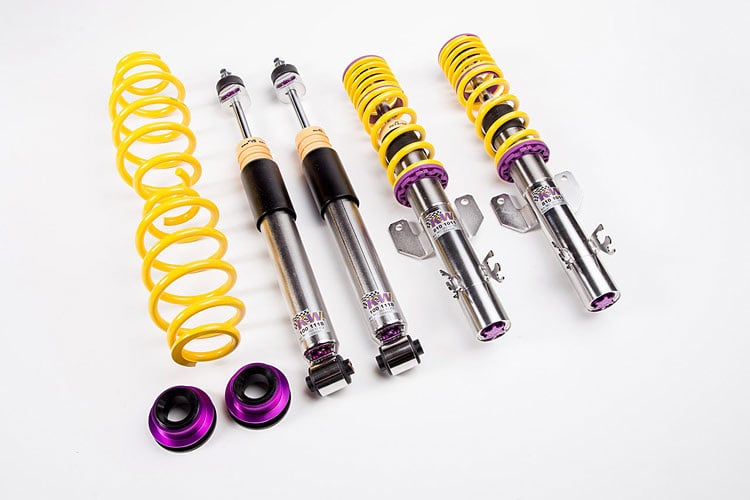

KW Variant 3 370z Coilovers

kw variant 3 370z coilovers

  • Manufacturer: KW
  • Levels of damping adjustment: 14
  • Construction type: Monotube
  • Spring rate front: Progressive spring (listed as 230lbs/in)
  • Spring rate rear: Progressive spring (listed as 230lbs/in)
  • Fitment: Nissan 370z, Z34, Infiniti G37, Infiniti Q60
  • Price: $2,124.99
  • Drifted rating: xxxxx
  • Purchase link: Buy your KW V3 coilover kit at FRSport.com

Our comment: Despite being one of the more expensive options on our list, they say that quality comes at a price and the KW coilover kit certainly lives up to that.

370Z owners have been stunned by this offering from KW for some time and the ability to provide great road comfort whilst also setting impressive lap times on the track leaves no questions on why owners are so impressed.

Manufacturer description:Ready for a driving experience as unique as your car? A KW Suspensions Variant 3 coilover set offer you the independent compression and rebound damping setup you need.

State-of-the-art technology from motor sports for more performance on the road. The separate and independently adjustable rebound- and compression damping allows for an individual suspension setup for different uses and preferences. The unique patented system with its two-stage valves allows a rebound damping adjustment (comfort) and a compression adjustment (driving dynamics) in the low-speed range while the high-speed range which controls the driving safety, is fixed.

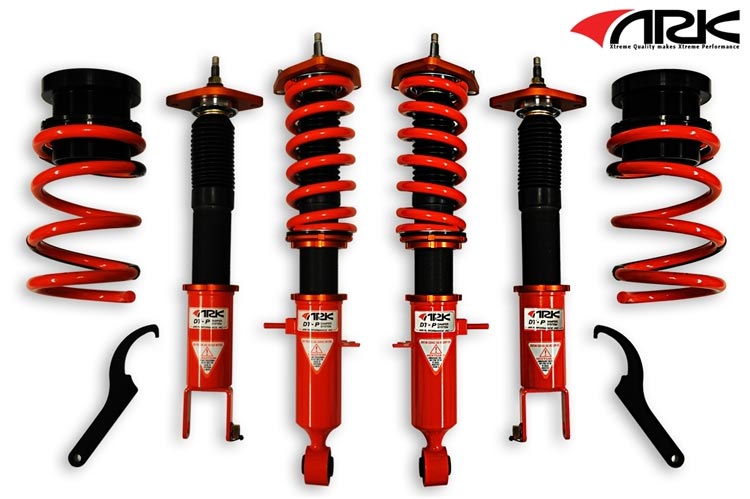

ARK DT-P 370z Coilovers

ark 370z coilovers

  • Manufacturer: ARK
  • Levels of damping adjustment: 16
  • Construction type: Monotube
  • Spring rate front: 12kg/mm
  • Spring rate rear: 11kg/mm
  • Fitment: Nissan 370z, Z34
  • Price: $1,571.65
  • Drifted rating:xxxx
  • Purchase link: Buy ARK DT-P at Enjuku Racing

Our comment: ARK have entered the market with two coilover variants, the DT-P, which are mostly track-focused alongside the ST-P which is street orientated.

Created from the Team ARK motorsports division alongside Formula Drift experience, the DT-P are a great option if you intend to hit the track. We’ve heard great things about the coilovers and ARK’s customer service which may well make these an even more appealing offering.

Manufacturer description:ARK Performance DT-P monotube coilover systems are fully adjustable with 16 levels of dampening to fit your street or track needs. Our suspension systems are engineered and designed based on knowledge from our Team ARK Racing motorsports division and Formula Drift experience. The DT-P system offers pillow ball top mounts which are more performance oriented and allow for better adjustment of camber.

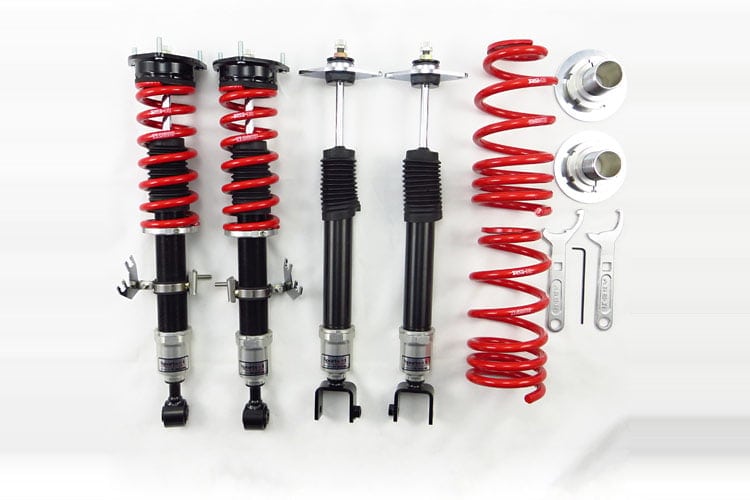

RS-R Sports*i 370z Coilovers

rsr 370z coilovers

  • Manufacturer: RS-R
  • Levels of damping adjustment: 36
  • Construction type: Monotube
  • Spring rate front: 8kg/mm
  • Spring rate rear: 8kg/mm
  • Fitment: Nissan 370z, Z34
  • Price: $1,899.00
  • Drifted rating:xxxx
  • Purchase link: Buy RS-R Sports*i coilovers at Enjuku Racing

Our comment: RS*R have brought a fantastic offering to the market with a unique approach. Quality and comfort have been their main goal and they’ve undoubtedly achieved that. If you’re after the handling advantages of a coilover but want to maintain a comfortable ride, these are the coilovers for you!

Manufacturer description:Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Why spend all day at the track dialing in your suspension when you should be on the track enjoying the experience. Damper and camber adjustments should not be a definitive factor, nor should you spend all day adjusting your suspension settings at the track. Drive to the track, on the track and drive home in comfort. Enjoy driving again with the RS-R Sports-I coilovers.

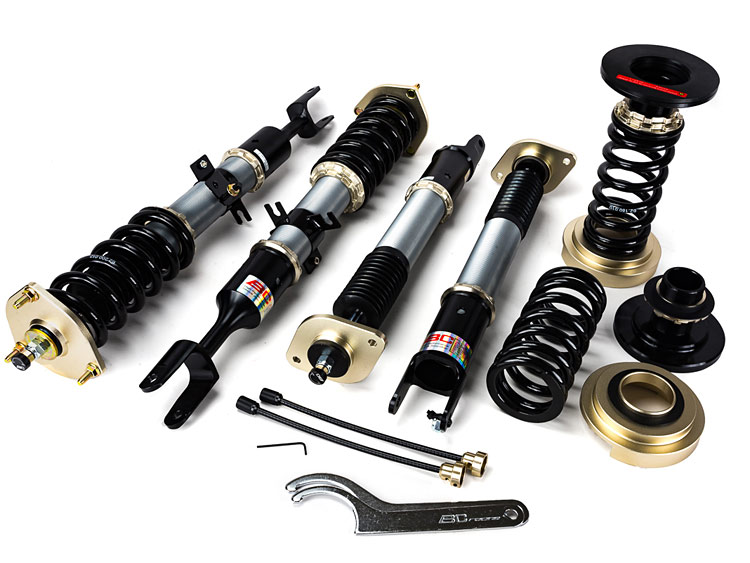

BC Racing BR Series 370z Coilovers

bcracing 370z coilovers

  • Manufacturer: BC Racing
  • Levels of damping adjustment: 30
  • Construction type: Monotube
  • Spring rate front: 10kg/mm
  • Spring rate rear: 8kg/mm
  • Fitment: Nissan 370z, Z34
  • Price: $995.00
  • Drifted rating:xxxxx
  • Purchase link: Buy BC Racing BRs at Enjuku Racing

Our comment: BC Racing offer what could quite possibly be the best budget coilover kit available. If you’re planning to spend less than $1k, this all-round kit could well be the perfect choice for you.

These offer a firm, but not crashy ride which is still ideal for street use and are more than capable for the money when you head to the track. BC also offer their higher-end ‘ER’ series coilovers which are a competitior for the KW V3’s if you’re intending to do mostly track use.

Manufacturer description:The BR model is perfect for street driving and occasional road course duty. With easily accessible adjustment knobs for fine tuning your compression/rebound and separately adjustable ride height, having a performance coilover system couldn’t be any easier. You choose how low or high you want your vehicle, no preset ride height here, and our patented concave lower locking ring keeps it locked in.

All of our systems come with pillowball mounts to provide the most feedback possible from your suspension and to sharpen your steering response. BC’s available front and rear camber plates also allow you to get the perfect alignment setup without compromise. All this while providing a strong, attractive looking coilover system.

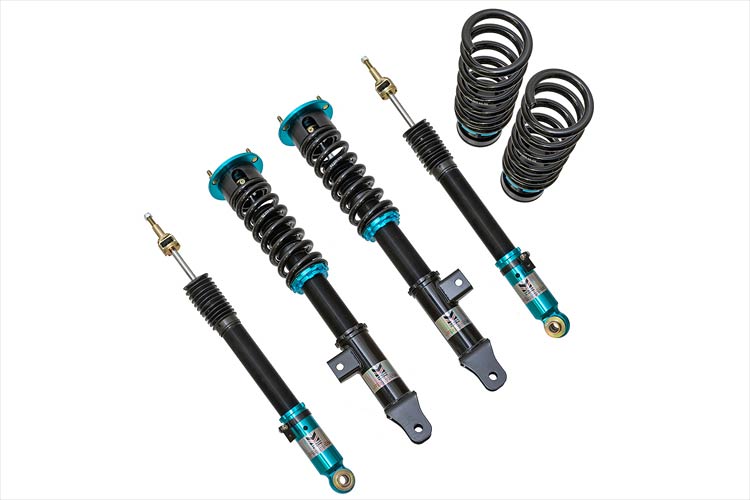

Megan Racing Street Series 370z Coilovers

megan racing 370z coilovers

  • Manufacturer: Megan Racing
  • Levels of damping adjustment: 15
  • Construction type: Monotube
  • Spring rate front: 10kg/mm
  • Spring rate rear: 8kg/mm
  • Fitment: Nissan 370z, Z34
  • Price: $799.99
  • Drifted rating:xx
  • Purchase link: Buy Megan Racing Street Series Coilovers at Amazon

Our comment: This entry-level option may suit those on a budget who are purely looking to improve their ride height and handling. We found that the build quality and finish was reflected in the price and would personally recommend forking out that little bit extra to purchase the BC BR coilovers that are closer to our mid-range offerings.

Manufacturer description:Megan Racing EZII Series coilover system is aimed towards the more budget oriented enthusiast to offer the most basic essentials from an after-market coil-over setup, yet makes no compromises for quality and performance.

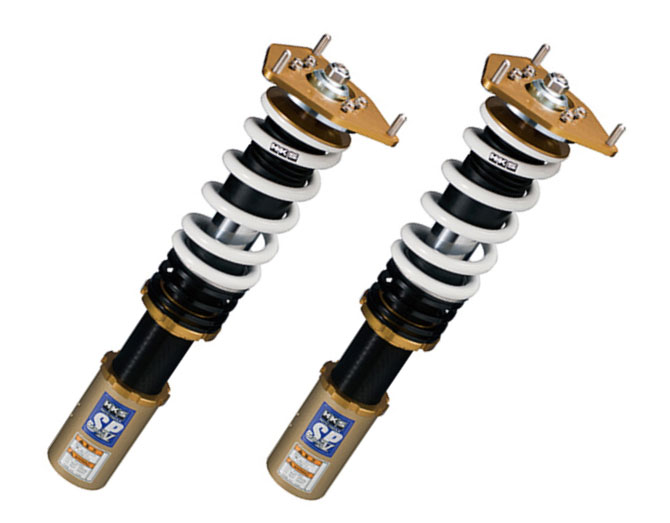

HKS Hipermax III 370z Coilovers

hks 370z coilovers

  • Manufacturer: HKS
  • Levels of damping adjustment: 30
  • Construction type: Monotube
  • Spring rate front: Range of options available
  • Spring rate rear: Range of options available
  • Fitment: Nissan 370z, Z34
  • Price: $2,539.99
  • Drifted rating:xxxxx
  • Purchase link: Buy HKS Hipermax III 370z Coilovers from FRSport

Our comment: Legendary Japanese tuning company HKS bring their hand with the highest price tag of our list. This option combines fantastic ride comfort which is close to stock comfort levels and fantastic handling alongside the typical quality you would expect from HKS.

These are a serious competitor for the KW V3’s and this may just boil down to personal preference, especially if you’re keen to maintain the JDM aspect on your car.

Manufacturer description:With the Hipermax III suspension series, the driver gains increased wheel control with improved performance of all vehicle dynamics and increased driver command in all conditions. Hipermax III combines track-quality control with excellent ride and handling characteristics at real-world street speeds.

HKS’ all-new Hiper Linear Piston Fluid Channel System damping system creates a positive relationship between piston speed and damping force, making it possible to produce a suspension that provides track-level control and feedback with exceptional ride quality at the same time. In addition, the Hipermax III is shock-body adjustable (most applications) to allow vehicle height adjustment without affecting spring rate and piston stroke. With the Hipermax III’s range of adjustability, precise corner balancing can be achieved. Chrome-plated cylinder shafts provide excellent durability and newly-design rubber upper mounts reduce harshness.

Our winner

Our winner is the highly acclaimed KW Variant 3 coilover.

It was a close call between the superb HKS Hipermax III and the KW V3’s, but with no way of faulting the hugely popular KW’s, they’re undoubtedly the best bang for your buck purchase on our list but either option certainly won’t disappoint!

KW Variant 3 370z Coilovers

kw variant 3 370z coilovers

For those with a serious budget who are looking to get the best lap times available, we have no doubt that the KW V3’s will be the ulimate choice. HKS Hipermax III and the BC Racing ER’s are undoubtedly fantastic alternatives if there’s any reason you would prefer to not go with the KW offering.

Runner-up

Another set of coilovers which really stood out during our research of this article were our budget-offering – BC Racing BR’s. At under $1k, we struggle to believe you will be able to find a better coilover out there for the money. If you’re still intending to make further upgrades to your car and looking for a cheaper alternative, we have no doubt that the BR’s will be perfect for your needs.

BC Racing BR

bcracing 370z coilovers

Thank you for reading our Nissan 370z coilover guide!

If you enjoyed this article then please share it with the sharing buttons at the side and the bottom of your screen.

Since you have a 370z, have you considered upgrading the exhaust system? Our 370z exhaust guide will give you all the information you need to pick your dream exhaust setup.

Do you have the Z34’s older brother – the 350z? Want to know which coilovers to buy? Try our 350z coilover guide.

Please remember to subscribe or follow us on Feedly for free updates. If we have missed a great coilover set that you think is worthy of mention then drop it in the comments below.

Written by The Drifted Team Follow us for more drifting content like this. Visit the author's website
